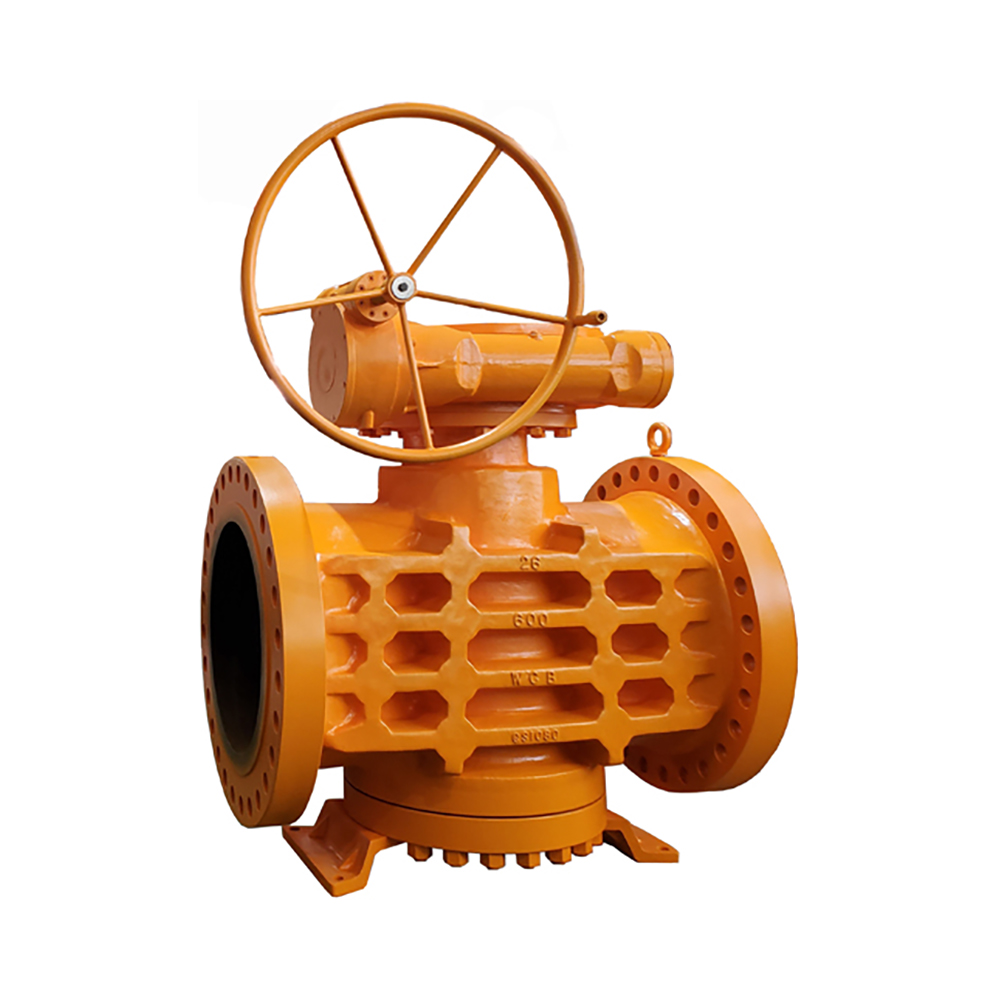

Plug valves

Shuangda Valve (SDV) Company plug valves are offered in Sleeve Type, Pressure Seal Balance design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. FBV plug valves are manufactured according to API 6D, API 599 Design.

Category: Tags: , , ,
  • PRODUCT RANGE
  • Sizes NPS ½ to NPS 36
  • Class 150 to Class 2500



  • MATERIALS
  • Available in Forging for NPS ≤ 2 (A105, A182 F304, F304L, F316, F316L, F51, F53, A350 LF2, LF3, LF5), Casting (A216 WCB, A351 CF3, CF8, CF3M, CF8M, A995 4A, 5A, A352 LCB, LCC, LC2), Monel, Inconel, Hastelloy



  • DESIGN FEATURES
  • Full or Reduced BoreSleeve Type or Pressure Seal Balance
  • RF, RTJ, or BW



  • DESIGN STANDARD
  • Design & manufacture according to API 599, API 6D, ISO 14313End Connection according to ASME B16.5 (RF, RTJ), ASME B16.47(RF, RTJ), MSS SP-44 (NPS 22 Only), ASME B16.25 (BW)Also available per NACE MR-0175, NACE MR-0103, ISO 15848
  • Test & inspection according to API 598, API 6D
  • Face-to-face according to API 6D, ASME B16.10
