Gate valves

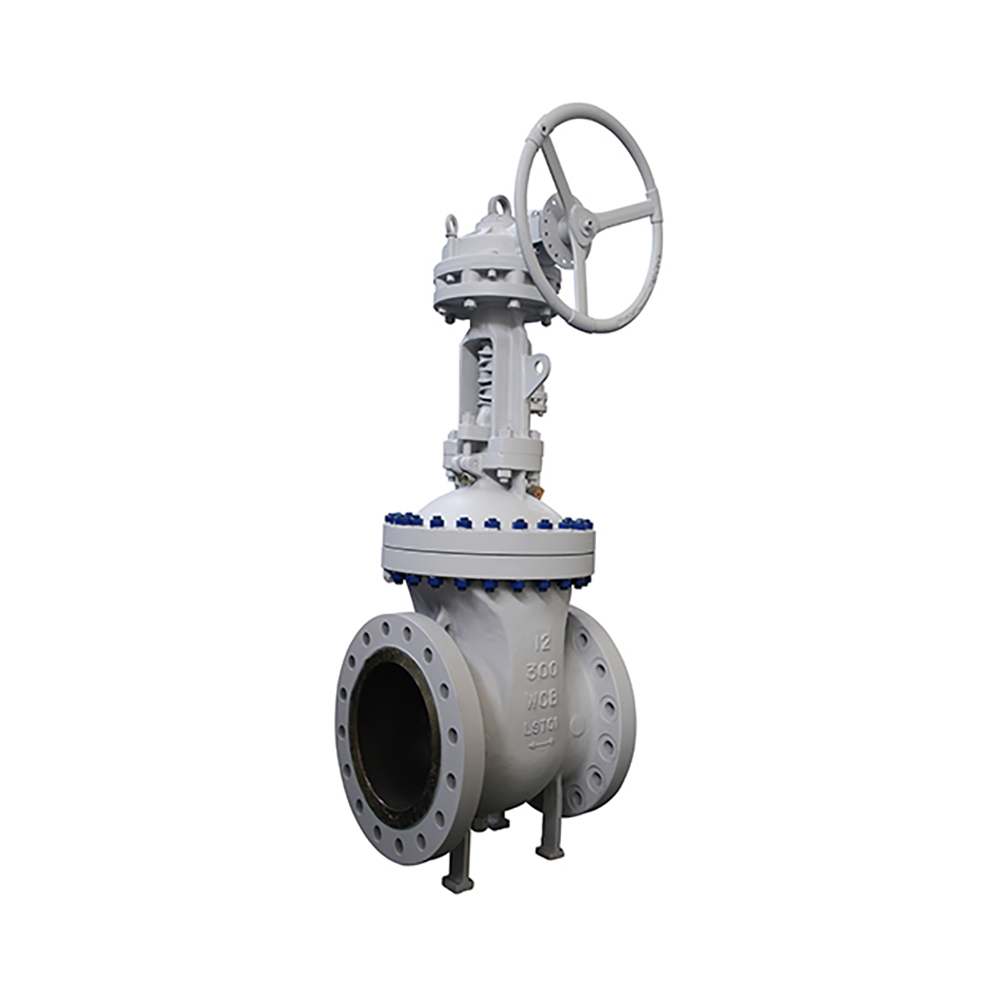

FBV gate valves are offered in flexible wedge, solid wedge, bolted bonnet and welded bonnet design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials.  FBV gate valves are manufactured according to API 600 Design.

Category: Tags: , ,
  • PRODUCT RANGE
  • Sizes NPS 2 to NPS 48
  • Class 150 to Class 2500



  • MATERIALS
  • Available in Casting (A216 WCB, WC6, WC9, A352 LCB, A351 CF8, CF8M, CF3, CF3M, A995 4A, A995 5A, A995 6A), Alloy 20, Monel, Inconel, Hastelloy



  • DESIGN FEATURES
  • Full or Reduced BoreOutside Screw & Yoke (OS&Y), rising stemFlexible or Solid Wedge
  • Renewable seat rings
  • Bolted Bonnet or Pressure Seal Bonnet
  • RF, RTJ, or BW



  • DESIGN STANDARD
  • Design & manufacture according to API 600, API 603, ASME B16.34End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API624
  • Test & inspection according to API 598
  • Face-to-face according to ASME B16.10
